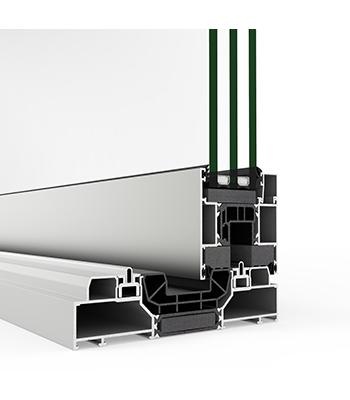

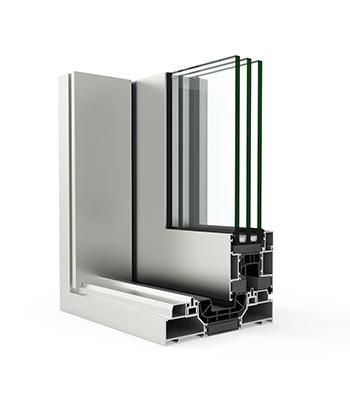

4600 Plus Lift & Slide
The new 4600 Plus Lift&Slide from Cortizo allows for the covering of large openings while ensuring exceptional thermal insulation. Its 80 mm deep sashes and special polyamides allow it to achieve a Uw transmittance of just 0,65 W/m²K, establishing itself as one of the sliding systems with the best thermal performance on the market.

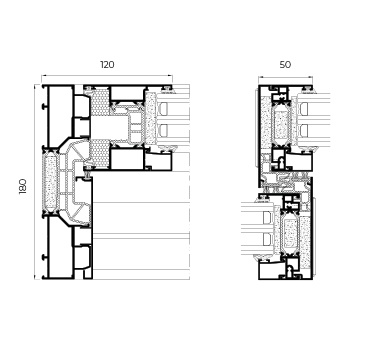

Furthermore, the perimeter interlock profile is reduced to 120 mm, allowing for an increased glazed surface and enhancing the entry of natural light into the rooms.
Furthermore, the perimeter interlock profile is reduced to 120 mm, allowing for an increased glazed surface and enhancing the entry of natural light into the rooms.
Dados técnicos
56 mm
Sliding
1 rail (1 sash + 1 fixed light), 2, 3 & 4 rails
Possibility of 90º opening without mullion
1 rail (1 sash + 1 fixed light), 2, 3 & 4 rails
Possibility of 90º opening without mullion
Frame 180 mm / 280 mm 3 rails /
380 mm 4 rails
Sash 80 mm
380 mm 4 rails
Sash 80 mm
Width (L) 3300 mm, Height (H) 3300 mm
400 kg
Consult maximum weight and dimensions according to typologies
Consult maximum weight and dimensions according to typologies
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
Ensaios
Uw ≥ 0,65 (W/m²K)
Please consult typology, dimensions and glazing
(EN 12207:2000) Class 4
(EN 12210:2000) Class 5
